Understanding a 3-way switch with 3 lights diagram can seem complex. Yet, it’s a common setup in many homes.
This wiring configuration allows you to control multiple lights from different locations. It’s handy for long hallways or large rooms. In today’s world, lighting control adds both convenience and efficiency to our daily routines. A 3-way switch system lets you turn lights on or off from various points.
Imagine walking through a dark hallway and having the ability to illuminate your path at either end. This setup not only enhances safety but also offers flexibility in how you manage lighting in your home. While the concept might appear daunting at first glance, breaking it down into simple steps can make it manageable. This guide will help you understand how to navigate the wiring diagram effectively.
Introduction To 3-way Switch Systems
Explore the simplicity of a 3-way switch system with three lights. Understand how each switch controls the lights independently. Enhance your home lighting setup efficiently with this straightforward diagram.
When it comes to illuminating multiple areas from different locations, understanding 3-way switch systems becomes crucial. Imagine walking through your hallway and having the ability to control your lights from either end. This is the magic of a 3-way switch system, which offers convenience and flexibility in your home lighting setup.Basics Of 3-way Switch
A 3-way switch system allows you to control a single light fixture from two separate locations. Think about it as having two different points of control—like switches at both ends of a staircase. This setup requires three wires: two traveler wires and one common wire. The traveler wires connect the two switches, allowing them to communicate. The common wire carries the electrical current to the light fixture. Understanding the wiring diagram can initially seem overwhelming, but it’s like following a simple map. Familiarizing yourself with these basics can help you troubleshoot or even install a 3-way switch system in your home.Advantages Of 3-way Systems
3-way switch systems bring a layer of convenience that is hard to overlook. They let you turn lights on or off from multiple locations, which is especially beneficial in larger spaces or when you have your hands full. Safety is another significant advantage. Imagine having the ability to light your path when entering a dark room. This can be a game-changer, reducing the risk of accidents. Moreover, these systems can enhance your home’s energy efficiency. You won’t have to leave lights on unnecessarily, as you can easily switch them off from different points. Have you ever thought about the energy savings and convenience this could bring to your everyday life? Exploring the concept of 3-way switches opens up possibilities not just for functionality, but also for making your living spaces more adaptable and efficient. Why not consider how this system can fit into your home’s lighting needs?Components Needed
Creating a 3-way switch setup with three lights involves specific components. Each element plays a crucial role in the system’s functionality. Understanding these components ensures a smooth installation process. Here, we’ll explore the essential components needed for the setup.
Switches Required
You’ll need two 3-way switches. These switches control the lights from two locations. They have three terminal screws: one common and two travelers. The common terminal connects to either the power source or the light fixture. The traveler terminals connect the switches together.
Understanding Electrical Cables
Electrical cables link the switches and lights. A 14/3 cable is recommended for this setup. It contains three conductors: black, red, and white, plus a ground wire. The black and red wires serve as travelers between switches. The white wire acts as a neutral conductor.
For the lights, a 14/2 cable is used. It includes a black conductor and a white neutral wire. The black wire connects the light to the switch. The white wire completes the circuit back to the power source.

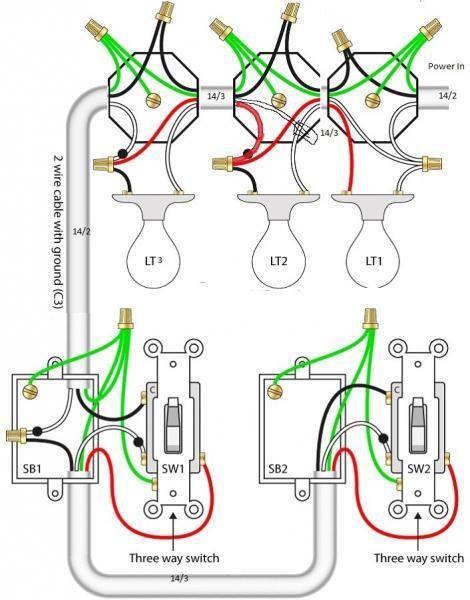

Wiring Diagram Essentials
Understanding a 3-way switch with 3 lights diagram is crucial for any DIY enthusiast or electrician. This diagram allows for controlling multiple lights from different locations. It simplifies complex wiring into easy-to-follow steps. Comprehending each element in the diagram ensures a smooth installation process. Let’s explore the essentials needed to grasp these diagrams fully.
Diagram Symbols
Diagram symbols are fundamental components in wiring diagrams. They represent various electrical parts and connections. Common symbols include lines for wires, circles for junctions, and switches. Recognizing these symbols is key to interpreting the diagram accurately. Each symbol serves a specific purpose in the wiring setup. Learning these symbols helps in understanding the flow of electricity.
Reading The Diagram
Reading the diagram involves analyzing its layout and connections. Begin by identifying the power source and switches. Trace the path of wires connecting these elements. Notice how lights are linked in sequence. Pay attention to junctions and connections between switches. Understanding the diagram’s structure aids in executing the wiring correctly. Clear reading ensures safe and efficient installation.
Step-by-step Installation Process
Installing a 3-way switch with three lights involves connecting wires correctly. Follow the wiring diagram carefully for safety. Ensure all connections are secure to avoid electrical issues.
Installing a 3-way switch with three lights can seem like a daunting task, especially if you’re not an electrician. But with a clear plan and the right guidance, you can tackle this project with confidence. This guide walks you through the installation process, ensuring that each step is straightforward and easy to follow. Let’s dive into the details and get those lights shining!Preparation Steps
Before you get started, gather all the necessary tools and materials. You’ll need a screwdriver, wire strippers, electrical tape, and a voltage tester. Make sure you have the 3-way switches, light fixtures, and the appropriate wiring. Safety is paramount, so turn off the power to the circuit you’ll be working on. Use a voltage tester to confirm that the power is off to avoid any accidents. It’s always better to double-check than to have regrets later. Sketch out a simple diagram of your setup. It doesn’t have to be perfect, but it should include the location of the switches and lights. This visual aid will help keep you on track during the installation.Connecting The Switches
Start by connecting the first switch. Identify the common terminal on the switch, typically a darker screw, and connect the power source wire to it. This ensures that power flows correctly to the other parts of the circuit. Next, move to the second switch. Use traveler wires to connect the two switches. These wires will be responsible for transferring the electrical signal back and forth between the switches, allowing them to operate the lights from different locations. Finally, connect the light fixtures. Attach each light to the corresponding wires, ensuring a secure connection. Wrap all connections with electrical tape for added safety and to prevent any loose wires from causing issues. Have you ever noticed how a small project can boost your confidence? This installation is a perfect example. Once you’ve connected everything, turn the power back on and test your setup. Seeing those lights illuminate at your command is a rewarding experience. Remember, taking the time to do each step carefully will not only ensure your safety but also the efficiency of your electrical system. What other home projects have you tackled that left you feeling accomplished?Adding Multiple Lights
A 3-way switch with 3 lights diagram helps control multiple lights from different locations. This setup enhances convenience in large spaces. Understanding the wiring layout simplifies installation and ensures a functional lighting system.
Adding multiple lights to a 3-way switch can be a great project. It enhances lighting in different areas. A 3-way switch allows control from two locations. This setup is ideal for hallways or large rooms. Understanding the wiring diagram is crucial. It ensures everything works correctly and safely. Let’s explore how to wire three lights and ensure a balanced load.Wiring For Three Lights
Begin by gathering necessary tools and materials. You need a screwdriver, wire cutter, and electrical tape. Start by switching off power at the circuit breaker. Safety first. Identify the main power source wire. Connect it to the first switch. Use a wire nut to secure connections. Run another wire from this switch to the first light. Follow the diagram closely. This ensures you connect everything correctly. From the first light, run a wire to the second light. Continue the same process to connect to the third light. Make sure all connections are tight. Loose connections can cause problems.Ensuring Balanced Load
Balancing the load helps prevent overload. Use wires that can handle the total wattage. Check the wattage of each bulb. Add them up to get the total. Divide the total wattage by the number of lights. This ensures each light gets equal power. Avoid using too many high-wattage bulbs. This can strain the circuit. Test the setup after wiring. Turn the power back on. Check if all lights work properly. If one light flickers, check connections again. Make adjustments where necessary. This keeps everything safe and efficient.
Safety Precautions
Working with electrical circuits requires careful attention to safety. Ensuring safety prevents accidents and protects you from harm. When dealing with a 3-way switch and 3 lights, understanding the safety measures is vital. With the right precautions, you can work confidently and securely.
Avoiding Electrical Hazards
Always turn off the power supply before starting any electrical work. Use a circuit tester to confirm the power is off. Wear insulated gloves to protect yourself from electric shocks. Keep your hands dry to avoid conductivity. Stay alert and focused on the task.
Testing Connections
Once installed, test all connections before finalizing the setup. Use a multimeter to ensure the circuit is complete. Check for any loose wires or faulty connections. Ensure all wires are secured tightly in their terminals. Proper testing guarantees a safe and efficient system.
Troubleshooting Common Issues
Facing problems with a 3-way switch setup can be frustrating. These issues often disrupt lighting in your home. Understanding common problems helps in fixing them efficiently. This guide provides solutions to typical troubles. It aims to make your repair process smoother and hassle-free.
Identifying Faulty Wiring
Faulty wiring is a frequent issue in 3-way switch systems. Wires may become loose or damaged over time. Inspect each wire connection carefully. Look for worn or frayed wires. Ensure all wires are securely connected. Use a voltage tester to check current flow. This tool helps in pinpointing the exact fault.
Fixing Flickering Lights
Flickering lights are another common problem. They may result from poor connections or faulty bulbs. Check the bulbs first. Replace any that seem old or damaged. Next, examine the switch connections. Tighten any loose screws or wires. If flickering persists, consider inspecting the electrical panel. Look for signs of overload or faulty breakers. Addressing these issues can stabilize your lighting.
Maintenance Tips
Maintaining your 3-way switch with a 3-lights setup ensures it functions effectively and safely. Regular upkeep helps prevent unexpected outages and prolongs the lifespan of your electrical components. Have you ever experienced flickering lights or switches that don’t respond? That’s often a maintenance issue. Let’s dive into some practical tips to keep your system in top shape.
Regular Checks
Regular checks are crucial for your switch system. Every few months, inspect the switches and lights for any visible wear or damage. A loose connection can cause flickering or even stop your lights from working.
Listen for buzzing sounds when you flip the switch. This could indicate a wiring issue. Tighten any loose screws and ensure wires are securely connected. Keeping an ear out for odd sounds can prevent larger problems down the line.
A simple routine check can save you from costly repairs. Wouldn’t you rather spend a few minutes now than hours fixing a bigger issue later?
Upgrading Components
Consider upgrading components for better performance and safety. Older switches can wear out and become unreliable. Newer models offer features like smoother operation and even smart connectivity.
Assess the quality of your wiring. High-quality wires reduce the risk of electrical fires. If you’re unsure about the state of your wiring, consult an electrician. It’s a small investment for peace of mind.
Think about your energy efficiency. Upgraded lights can reduce your electricity bill. Have you thought about how much you could save by switching to LED bulbs?
Remember, maintenance is not just about fixing issues—it’s about preventing them. Regular checks and upgrades are your best allies in keeping your 3-way switch system running smoothly.
Benefits Of 3-way Switch With Multiple Lights
A 3-way switch setup allows controlling multiple lights from different locations. This provides convenience and flexibility, especially in large rooms. The diagram simplifies understanding the wiring process, making installation easier for homeowners.
Imagine walking into a room and effortlessly controlling multiple lights from two different locations. That’s the magic of a 3-way switch setup. Not only does it offer convenience, but it also brings several benefits that can enhance your daily life. Let’s dive into the advantages of using a 3-way switch with multiple lights.Enhanced Lighting Control
A 3-way switch with multiple lights gives you the power to control your lighting like never before. Picture yourself entering a long hallway. You can turn on the lights at the beginning and then conveniently switch them off at the end. This setup is especially useful in large spaces like living rooms or staircases. Having multiple switches for the same set of lights ensures you don’t have to walk back to the original switch to turn them off. This not only saves time but also adds a layer of convenience to your everyday routine. Think about the ease of controlling lights without retracing your steps.Energy Efficiency
Are you worried about energy bills? A 3-way switch can help you manage your lighting efficiently. By placing switches at strategic locations, you minimize the chances of leaving lights on unnecessarily. This can lead to noticeable savings on your electricity bill over time. Consider using energy-efficient bulbs along with your 3-way switch setup. This combination can further enhance your home’s energy-saving potential. Opting for LED bulbs, for example, can significantly reduce energy consumption while providing excellent illumination. So, have you considered the benefits of a 3-way switch with multiple lights for your home? It might be time to rethink how you control your lighting.
Frequently Asked Questions
Which Wire Goes Where On A 3-way Switch?
Connect the black (common) wire to the black screw. Attach the red and white (traveler) wires to the brass screws. Ensure the ground wire is connected to the green screw. Always turn off the power before wiring to ensure safety.
Do The Travelers Matter On A 3-way Switch?
Travelers are crucial in a 3-way switch setup. They connect two switches to control one light. Proper wiring ensures switches work correctly. Incorrect traveler connection can cause malfunction. Always verify connections for optimal performance.
What Happens If You Wire A 3-way Switch Wrong?
Wiring a 3-way switch incorrectly can cause lights to malfunction or not turn on. It may lead to electrical shorts, posing safety risks. Verify connections and consult a professional for troubleshooting. Proper installation ensures functionality and prevents hazards. Always prioritize safety when dealing with electrical wiring.
How Many 3-way Switches Can Be Installed To Control A Light?
You can install multiple 3-way switches to control a light. Typically, two 3-way switches are used for basic setups. For more control points, add 4-way switches between the 3-way switches. This setup allows multiple switches to control a single light effectively.
Conclusion
Mastering the 3-way switch with 3 lights is achievable. A clear diagram helps simplify the process. Understanding the connections ensures safe and efficient wiring. Follow the steps carefully for best results. Check connections twice to avoid errors. Proper tools are essential for success.
Safety should always be the top priority. Always turn off power before starting work. Enjoy the benefits of a well-lit home. It’s a rewarding and satisfying project. With patience, you’ll succeed. Happy wiring!
